Janisol Doors
Janisol Custom Steel Lift-Slide Doors
The Janisol lift-and-slide door range redefines living space. This proven system, which was developed especially for large openings, allows indoor and outdoor spaces to merge and create a unique, open living ambiance. The threshold at the bottom is made of high-grade, glassfibre-reinforced plastic and provides an access to meet the needs of the disabled while ensuring excellent thermal insulation. Janisol lift-and-slide doors are compliant with the CE marking requirements and have been tested at ift Rosenheim.
Available with IQ Radiant Glass - Providing Thermal Comfort Without Condensation
Product details
Materials / surface finishes
-
Steel profiles in zinc-coated steel strip
-
Insulators manufactured out of glassfiber-reinforced plastic
-
Threshold profiles manufactured out of glassfiber-reinforced plastic
Element types
-
Manual lift-and-slide
-
1-, 2- or 4-leaf
-
Sliding arrangements type A, C, D, F and K
-
Various possible panel sizes
Equipment
-
Fitting up to 400kg/leaf
-
Up to 600kg/leaf as special solution
-
Sliding leaf width up to 4,270 mm (CE up to 3,310 mm)
-
Leaf height up to 3,200 mm
-
Motorizable as special solution

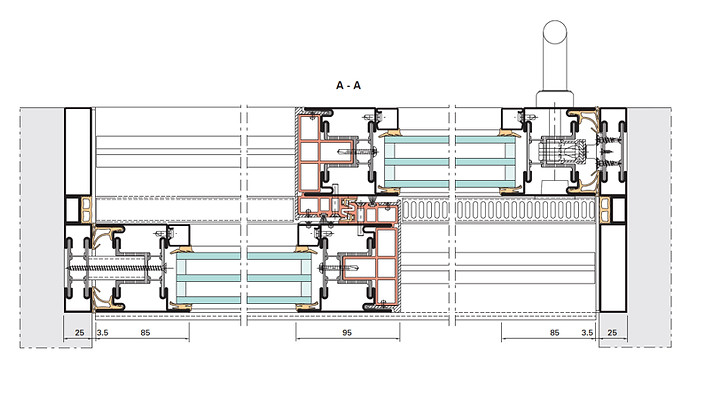

Special technical features
-
Installation depth sliding and fixed leaves of 80 mm
-
Installation depth 185 mm Infill element thickness 25 - 57 mm
-
Face width leaf 85 mm
-
Face width leaf with frame 113.5 mm
Test certificates
CE marking in accordance with product standard EN 14351-1
• Tightness against heavy rain until class 6A
• Air permeability until class 4
• Resistance to wind load until class C2/B2
• Shear connection according to EN 14024
• Airborne sound insulation until Rw 39 db
