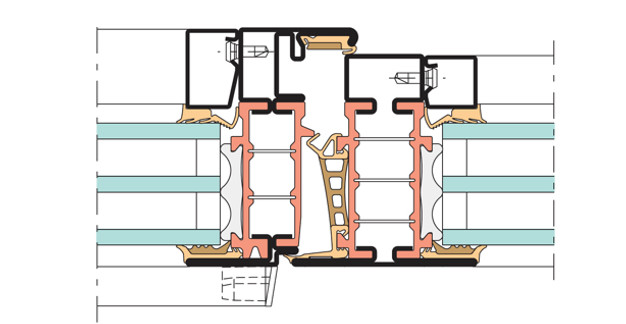

Janisol HI Windows - Custom Steel High Performance Systems
All Available with the Awesome Thermal Comfort Provided by:
IQ Radiant Glass®️
Introduced for the first time by Jansen at BAU 2013, the Janisol HI system sets new standards in thermal insulation. Triple glazing windows achieve an excellent coefficient of thermal transmittance of up to Uw 0.69 W/m2K (for fixed lights) and up to Uw 0.8 W/m2K (for windows). Thanks to the high-tech insulating bars made from glass fibre-reinforced polyurethane, the new window system also achieves excellent static values and its performance has been highly confirmed in numerous tests (air/water/wind)
Product details
Materials / surface finishes
-
Hot-dip galvanised steel strip, suitable for powder-coating or stove-enamelling
Window and opening types
-
Single- and double-vent windows, with and without fixed side panels or transoms
-
Side-hung, turn-tilt, bottom-hung, top-hung and double-vent windows
-
Fixed lights
Equipment
-
Concealed or surface-mounted fittings
-
Integrated or fitted electric drives
Special technical features
-
Installation depth 90 mm (vents), 80 mm (fixed lights)
-
Infill element thickness up to 67/57 mm (triple glazing)
-
Vent heights up to 2.8 m
-
Very good static values, narrow face widths
-
Vent weights up to 180 kg
Test certificates
CE marking in accordance with product standard EN 14351-1
• Tightness against heavy rain until class 9A (600Pa)
• Air permeability until class 4 (600 Pa)
• Resistance to wind load until class C4 (1600 Pa)
• Airborne sound insulation Rw 46 db
• Coefficient of thermal transmittance Uw > 0.69 W/m2K for fixed lights
• Shear connection in accordance with EN 14024
• Coefficient of thermal transmittance Uw > 0.8 W/m2K for windows

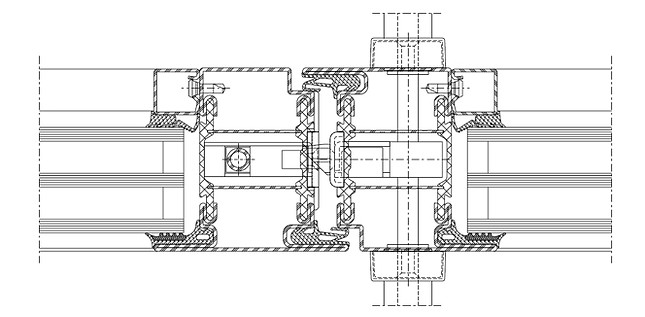

Janisol HI Doors - High Performance Custom Steel Solutions
Introduced for the first time by Jansen at BAU 2013, the Janisol HI system sets new standards in thermal insulation. Triple glazing doors achieve an excellent coefficient of thermal transmittance of UD 1.0 W/m2K. Thanks to the high-tech insulating bars made from glass fibre-reinforced polyurethane, the new door system achieves excellent static values and its performance has been highly confirmed in numerous tests (air/water/wind/mechanics).
Product details
Materials / surface finishes
-
Hot-dip galvanised steel strip, suitable for powder-coating or stove-enamelling
Element types
-
Single- and double-leaf doors with and without fixed side panels or transoms
-
Inward- and outward-opening
Equipment
-
Welded hinges in steel
-
Integrated door closers
-
Mortise locks, mortise locks with top retracting bolt
-
Multipoint locks (motorised also available)
-
Emergency locks and panic push-bars
-
Designer glazing frames
Special technical features
-
Installation depth 80 mm
-
Infill element thickness up to 57 mm (triple glazing)
-
Very good static values, narrow face widths
-
Leaf heights up to 3.0 m
Test certificates
CE marking in accordance with product standard EN 14351-1
• Tightness against heavy rain until class 6A
• Air permeability until class 4 (600 Pa)
• Resistance to wind load class until C4 (1600 Pa)
• Isolement aux bruits aériens until Rw 45 db
• Coefficient of thermal transmittance UD > 1.0 W/m2K
• Shear connection in accordance with EN 14024
• Long-term function according to EN 12400 class 8
• Mechanical values in accordance with EN 1192 class 4
• Emergency exit doors in accordance with EN 1125 / EN 179
