VISS Façade Pivot Door
IQ Radiant Glass®️
All Available with the Awesome Thermal Comfort Provided by:
IQ Radiant Glass®️

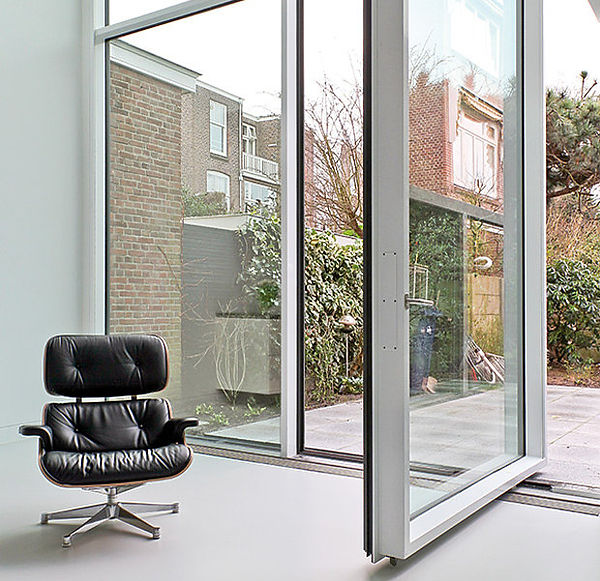

With the new VISS façade door as a project specific solution for floor-to-ceiling and grid-sized doors, the generous VISS façade line can now also be used and continued in entrance areas. Jansen is thus adding a visual and functional highlight to the design possibilities for large glass façades.
Available with IQ Radiant Glass - Providing Thermal Comfort Without Condensation
Product details
Materials / surface finishes
-
Uncoated steel or hot-dip galvanised steel strip, suitable for powder-coating or stove-enamelling
-
Cover profiles in aluminium and stainless steel
Load-bearing constructions
-
VISS system profiles
Construction types
-

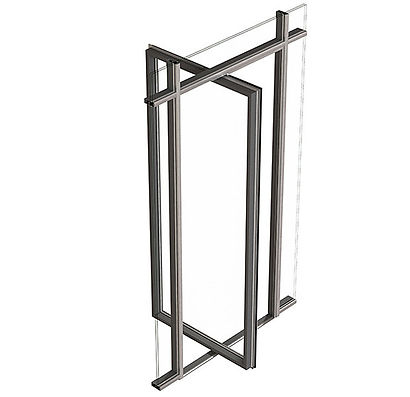

The VISS swing door is inward-opening, operated from the inside
Equipment
-
Large, thermally insulated façade swing door for special applications and requirements (max. W x L = 2000 x 6000 mm, max. leaf weight 700 kg)
Special technical features
-
Thermally insulated door rebate profiles available for glass thicknesses of 27 to 42 mm
Test certificates
-
Project specific in accordance with country and state standards
